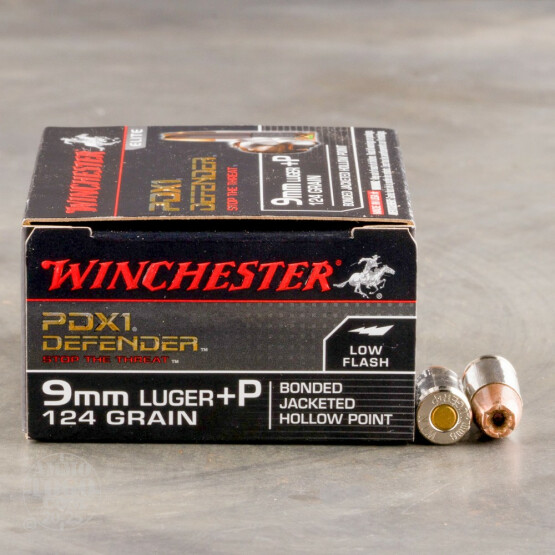

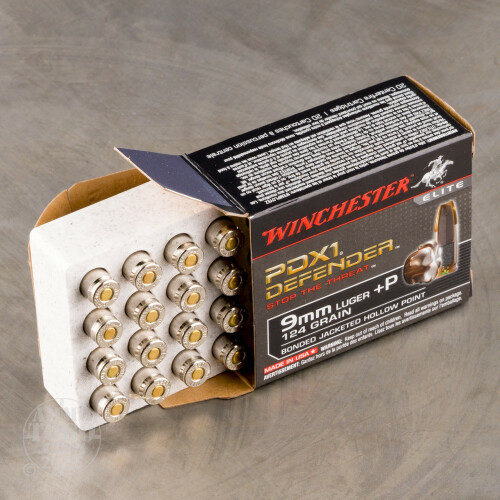

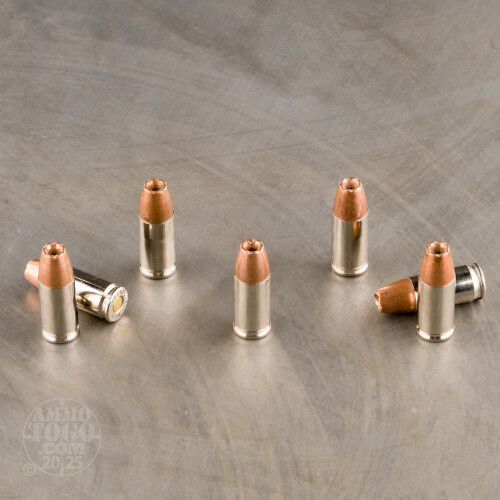

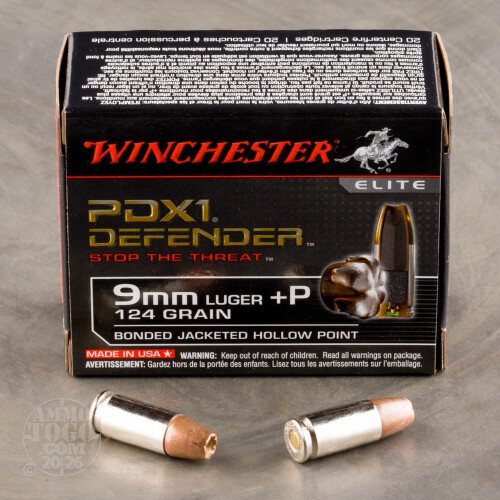

20rds – 9mm +P Winchester Defender 124gr. PDX1 Bonded JHP Ammo

Winchester Ammunition 124 Grain Jacketed Hollow-Point (JHP) Ammo Details

Winchester has designed their Defender line of ammunition in order to maximize the performance set forth by the FBI’s test protocol, and indeed the agency has employed this ammo extensively in their oftentimes dangerous line of work. This 9mm +P round’s hollow point PDX1 projectile expands reliably thanks to the notches that the tip of its jacket sports, so it consistently widens to 1.5 times its original diameter over the course of penetration. This round’s bullet also penetrates deeply, even after having overcome tough urban barriers, because its bonded jacket and core are so tightly welded together. With such expansion and penetration on your side few threats exist that couldn’t be quickly and effectively neutralized.

Winchester has outfitted this round with a nickel plated brass casing, so it feeds and ejects without a hiccup in a semi-automatic weapon and further won’t lose its effectiveness to corrosion. You may also more easily spot this round in the chamber thanks to its sheen, a feature of particular value should you ever have to draw your weapon in the dark. Please note that this is +P ammunition, and will wreak havoc on a pistol that isn’t rated to fire it.

Gel test Results

In hopes of giving ourselves and our customers a better idea how this 9mm Luger (9x19) self-defense ammo would perform if called upon in a self-defense scenario, we tested dozens of the best selling hollow points on the market.

We fired five rounds of this Winchester Ammunition 9mm Luger (9x19) ammo through a cloth barrier into Clear Ballistics calibrated synthetic gelatin and recorded the results. For these tests, we used a S&W M&P Shield with a -inch barrel. In the photos, graphics and video on this page, you can see specifically how the Winchester Ammunition ammo performed and how it sticks up with the rest of the 9mm Luger (9x19) ammo we have tested so far.

To read more about our testing procedures and discover what round makes the best self-defense ammo for you head to this page.

Unfired versus Fired Round Comparison

Image detailing before and after firing 20rds – 9mm +P Winchester Defender 124gr. PDX1 Bonded JHP Ammo Image detailing before and after firing 20rds – 9mm +P Winchester Defender 124gr. PDX1 Bonded JHP Ammo

How do the results for this Winchester Ammunition 9mm Luger (9x19) compare to other 9mm Hollow Point Ammo?

20rds – 9mm +P Winchester Defender 124gr. PDX1 Bonded JHP Ammo Gel Test Results

  Median
Bullet Depth (in.) 13.5 14 22.8 27 39.6
Expanded Diameter (in.) 0.35 0.35 0.4 0.6 0.66
Bullet Weight after shot (gr.) 122.8 123.8 123.9 124.2 124.3
Bullet Velocity (fps) 1026 1037 1042 1053 1064

Winchester Ammunition 9mm Luger (9x19) Ballistic Data

Winchester Ammunition 9mm Luger (9x19) Ammo Details

Barrel Length inches
4
Ballistics Coefficient (G1)
0.000
Ballistics Coefficient (G7)
0.000
Sectional Density
0.141
Muzzle 25 yds. 50 yds. 75 yds. 100 yds.
Velocity fps 1200 1143 n/a n/a n/a
Energy ft lbs 396 360 n/a n/a n/a
Bullet drop inch n/a n/a n/a n/a n/a

Velocity / Energy Comparisons

Ammo Muzzle Velocity Muzzle Energy
115 Grain Full Metal Jacket (FMJ) Blazer Brass
#26
1047 fps
#39
280 ft lbs
115 Grain Full Metal Jacket (FMJ) Sellier & Bellot Ammunition
#13
1130.5 fps
#13
329 ft lbs
124 Grain Full Metal Jacket (FMJ) Blazer Brass
#37
1014 fps
#38
283 ft lbs
115 Grain Full Metal Jacket (FMJ) Fiocchi Ammunition
#17
1089 fps
#21
303 ft lbs
115 Grain Full Metal Jacket (FMJ) Tula Ammo
#8
1150 fps
#10
338 ft lbs
124 Grain Full Metal Jacket (FMJ) Federal Ammunition
#22
1049 fps
#22
303 ft lbs
115 Grain Full Metal Jacket (FMJ) Federal Ammunition
#23
1048 fps
#40
280 ft lbs
124 Grain Full Metal Jacket (FMJ) Winchester Ammunition
#16
1095 fps
#12
330 ft lbs
124 Grain Full Metal Jacket (FMJ) Magtech
#34
1024 fps
#32
289 ft lbs
147 Grain Full Metal Jacket (FMJ) Federal Ammunition
#43
953 fps
#25
297 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Federal Ammunition
#31
1028 fps
#30
291 ft lbs
147 Grain Jacketed Hollow-Point (JHP) Federal Ammunition
#44
953 fps
#26
297 ft lbs
115 Grain Full Metal Jacket (FMJ) PMC Ammunition
#20
1057 fps
#35
285 ft lbs
124 Grain Full Metal Jacket (FMJ) Sellier & Bellot Ammunition
#27
1039 fps
#29
296.5 ft lbs
124 Grain Full Metal Jacket (FMJ) Fiocchi Ammunition
#24
1048 fps
#23
302 ft lbs
115 Grain Full Metal Jacket (FMJ) Magtech
#11
1135 fps
#14
329 ft lbs
115 Grain Full Metal Jacket (FMJ) Winchester Ammunition
#7
1157.5 fps
#9
342.5 ft lbs
115 Grain Jacketed Hollow-Point (JHP) Federal Ammunition
#25
1048 fps
#41
280 ft lbs
147 Grain Full Metal Jacket (FMJ) Blazer Brass
#49
903 fps
#47
266 ft lbs
115 Grain Full Metal Jacket (FMJ) Wolf Ammunition
#9
1150 fps
#11
338 ft lbs
147 Grain Jacketed Hollow-Point (JHP) Federal Ammunition
#45
953 fps
#27
297 ft lbs
115 Grain Jacketed Hollow-Point (JHP) Federal Ammunition
#4
1225 fps
#2
383 ft lbs
115 Grain Jacketed Hollow-Point (JHP) Hornady Ammunition
#32
1028 fps
#46
270 ft lbs
115 Grain Total Metal Jacket (TMJ) Speer
#15
1098 fps
#19
308 ft lbs
147 Grain Jacketed Hollow-Point (JHP) Speer
#48
915 fps
#45
273 ft lbs
150 Grain TSJ Federal Ammunition
#50
857 fps
#49
245 ft lbs
115 Grain Solid Copper Hollow Point (SCHP) Black Hills Ammunition
#5
1175 fps
#7
352 ft lbs
135 Grain Jacketed Hollow-Point (JHP) Hornady Ammunition
#42
960 fps
#42
276 ft lbs
147 Grain Total Metal Jacket (TMJ) Speer
#47
932 fps
#37
284 ft lbs
124 Grain Full Metal Jacket (FMJ) PMC Ammunition
#36
1017 fps
#36
285 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Fiocchi Ammunition
#35
1020 fps
#33
287 ft lbs
100 Grain Frangible Federal Ammunition
#19
1075 fps
#48
257 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Remington Ammunition
#12
1131 fps
#8
352 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Speer
#18
1085 fps
#16
324 ft lbs
147 Grain Jacketed Hollow-Point (JHP) Speer
#46
936 fps
#34
286 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Speer
#28
1039 fps
#28
297 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Winchester Ammunition
#6
1171.5 fps
#3
378 ft lbs
147 Grain Jacketed Hollow-Point (JHP) Sig Sauer
#39
985 fps
#17
317 ft lbs
115 Grain Solid Copper Hollow Point (SCHP) Barnes Bullets
#29
1039 fps
#43
276 ft lbs
124 Grain XTP Hornady Ammunition
#33
1027 fps
#31
290 ft lbs
158 Grain Full Metal Jacket (FMJ) Fiocchi Ammunition
#51
814 fps
#50
232 ft lbs
150 Grain Full Metal Jacket (FMJ) Sellier & Bellot Ammunition
#41
966 fps
#18
310 ft lbs
124 Grain Jacketed Hollow-Point (JHP) Black Hills Ammunition
#10
1150 fps
#5
364 ft lbs
100 Grain HoneyBadger Black Hills Ammunition
#1
1300 fps
#4
375 ft lbs
115 Grain Jacketed Hollow-Point (JHP) Corbon
#3
1250 fps
#1
399 ft lbs
115 Grain Jacketed Hollow-Point (JHP) Hornady Ammunition
#30
1038 fps
#44
275 ft lbs
92 Grain Pre-Fragmented G2 Research
#2
1265 fps
#15
327 ft lbs
138 Grain Segmented Hollow Point (SHP) Federal Ammunition
#40
985 fps
#24
298 ft lbs
125 Grain HoneyBadger Black Hills Ammunition
#21
1050 fps
#20
306 ft lbs
127 Grain Jacketed Hollow-Point (JHP) Winchester Ammunition
#14
1120 fps
#6
354 ft lbs
100 Grain Jacketed Hollow-Point (JHP) Hornady Ammunition
#38
1003 fps
#51
224 ft lbs
