The Vortex AMG UH-1 Gen II review starts with one question: can the Huey holographic sight deliver fast CQB performance on rifles and PCCs? After extensive range testing, we found out.

Running the Vortex AMG UH-1 Gen II “Huey” Holographic Sight

The Vortex AMG UH-1 Gen II Holographic Sight is a very capable optic designed for carbines, PDWs, and PCCs. The UH-1 is designed for law enforcement and military CQB scenarios but serves very well in the civilian self-defense role.

The UH-1, however, is not a red dot, though it serves the same purpose. Red dots operate by using an LED emitter to project the reticle on the optic’s front lens. Holographic sights use a laser to float the reticle in the shooter’s field of view.

The Vortex AMG UH-1 is affectionately known as the “Huey,” an obvious nod to the Vietnam-era Bell UH-1 Iroquois helicopter which bore the same sobriquet. Despite being different machines, the Vortex version shows the same toughness and reliability that made the Huey helicopter famous.

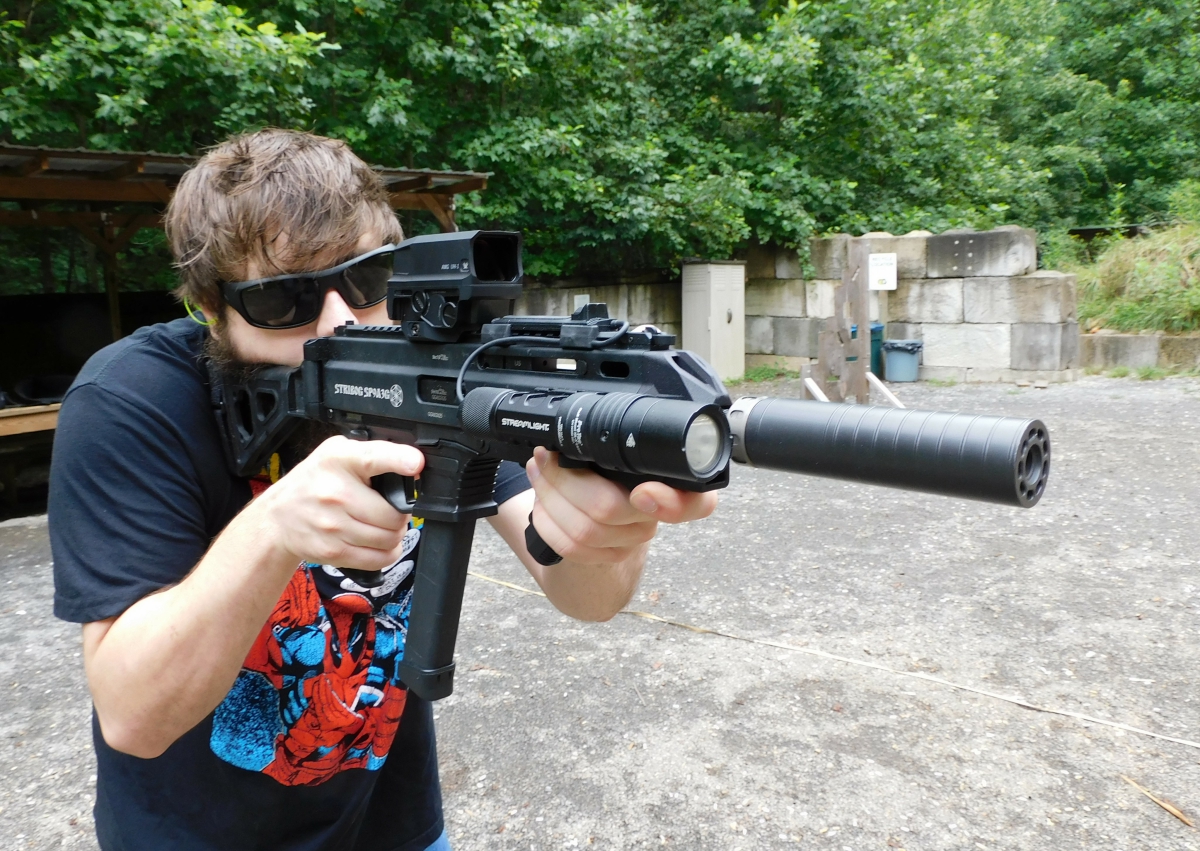

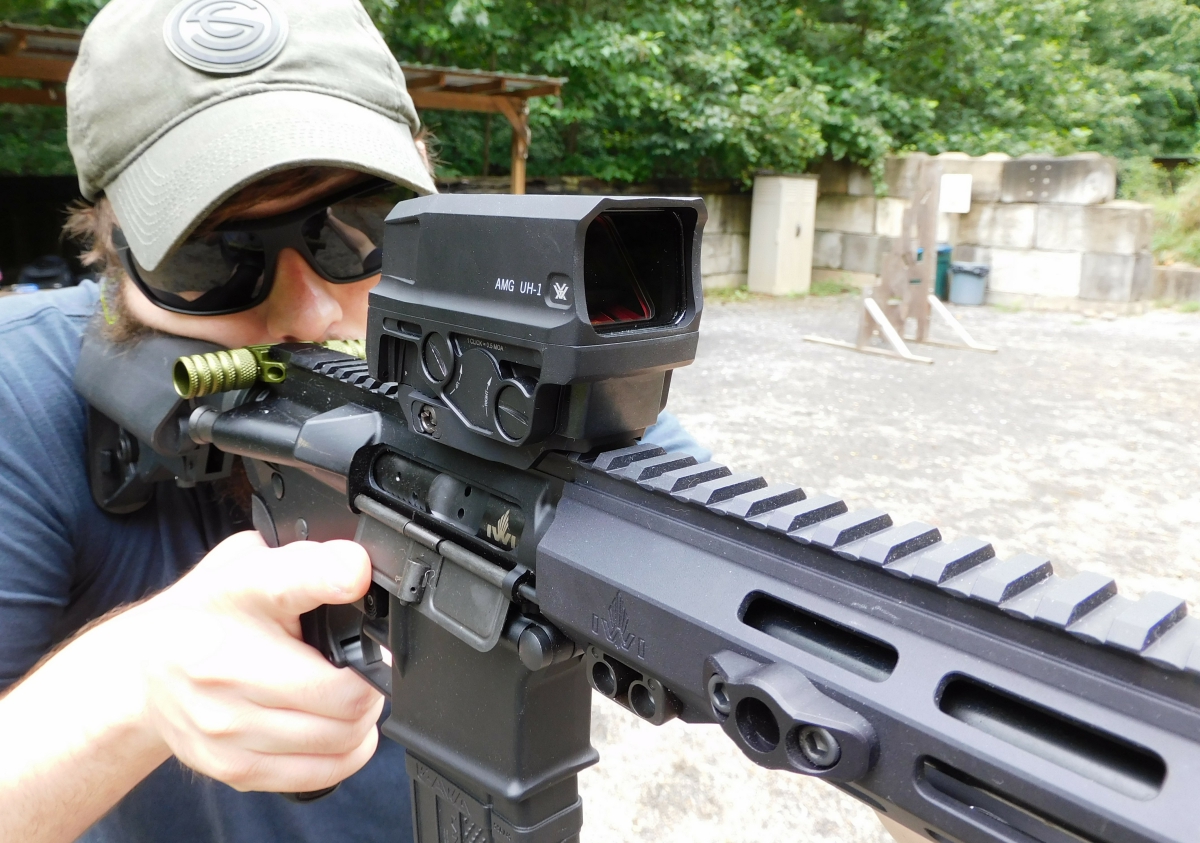

Vortex recently sent us a Huey for testing. We ran it on an IWI Zion-15 rifle, an Aero Precision X-15 rifle, and a Grand Power Stribog SP9A3G PDW. The testing consumed 350 rounds of 5.56 NATO, and 420 rounds of 115-grain Federal American Eagle 9mm FMJ.

Vortex AMG UH-1 Gen II Features

The UH-1 is robust, with its housing machined from a single block of aircraft-grade aluminum with a low-glare matte black or tan anodized finish topped off by Vortex’s ultra-hard ArmorTek scratch-resistant coating. The unit is O-ring sealed and gas-purged to eliminate water, dust, and debris while preventing fogging.

The Huey’s glass is very clear, a fact made plain by the large objective window. The multi-coated lenses reduce reflection while also increasing light transmission. Vortex’s proprietary Fusion Hologram with Quantum Well Light Control (FHQ) technology virtually eliminates stray light emissions for a stealthier signature. The unlimited eye relief means you can mount the UH-1 wherever you’re comfortable.

14 brightness settings provide a visible reticle in any lighting condition. Two rear-mounted buttons control those settings. A separate rear-mounted “NV” button controls the 8 night vision settings. All three buttons are audible and tactile. They’re also large enough to use with gloves.

The audible and tactile elevation and windage controls adorn the right side, though they lack visual indexes. You will need a tool or a coin to operate them. The left-side battery compartment is easily manipulated with your fingers.

The Vortex EBR-CQB Complex Reticle

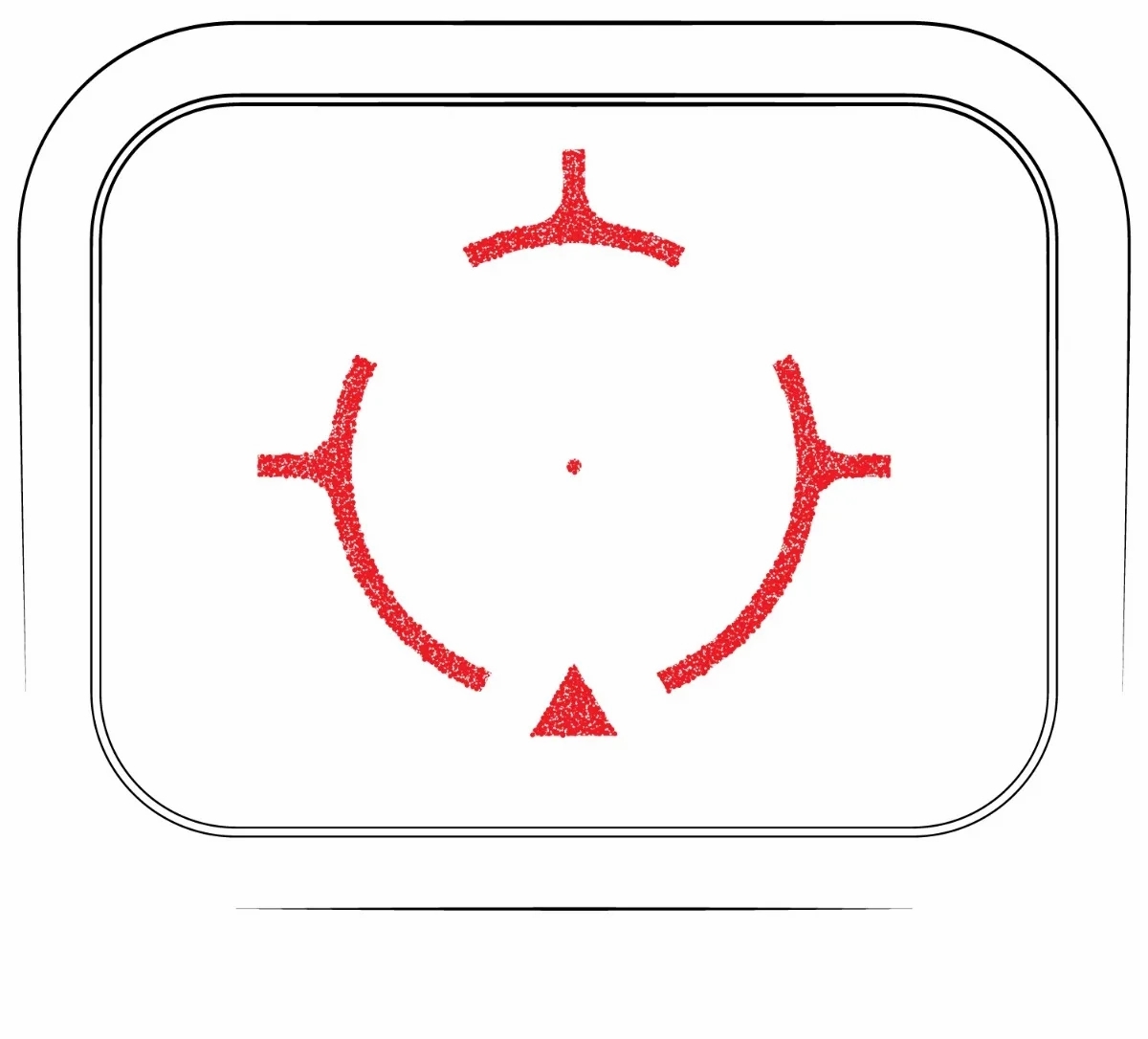

The EBR-CQB reticle consists of a 1-MOA red dot inside a 68-MOA semi-ring. Reference points mark the North, East, and West, with a small red triangle in the South. The reticle is very forgiving, seeming to grow in size as you move the optic away.

I mentioned how holographic reticles operate differently from red dots. Parallax is essentially eliminated since holographic sights are less subject to head movements and awkward shooting positions. The UH-1’s reticle will keep you on target at more extreme angles than a red dot.

Red dot reticles, however, appear sharper than their holographic counterparts. The Huey’s reticle appears pixelated when you look at it. That’s normal. The trick, as with red dots, is to look through the reticle to the target. That flies contrary to what most American shooters are taught, namely to focus on the front sight. But a little practice makes it easier, and the reticle sharpens considerably. You’ll also notice that holographic sights drain your batteries faster than red dots because they draw more power.

UH-1 Huey Range Time

The Vortex UH-1 is a compact optic, despite being larger than most rifle red dots. We didn’t notice the weight, but the performance was front and center. The large objective window and unlimited eye relief gave us maximum versatility on each firearm and the optic impressed me and my co-tester.

Range-testing optics of this kind requires drills that reveal reliability and clarity not only from the bench, but in transition. Our go-to drill for that is a take on the standard 2-2-2 drill, with two targets at 10 yards, and a third at 50 yards. We incorporate movement and magazine changes to emphasize target acquisition in terms of speed and ease.

We shoot the following sequences: 10-10-50; 50-10-10; and 10-50-10. Transitioning between the 10-yard targets and 50-yard target requires lateral movement each way. Each sequence includes one mag change. We load each other’s mags so that mag change points are not known ahead of time.

Vortex points out the UH-1’s zero image distortion as facilitating fast target acquisition. We agree with that claim. Coming on target was easy, not least because of the large window, but the reticle never blurred and it was always on target when we needed it. That includes quick transitions between the side-by-side 10-yard targets, coming back after a mag change, and moving to acquire whichever target we needed. Learning to look through the reticle, instead of directly at it, is key. That skill, in my opinion, applies to red dots as well as holographic sights. My shooting improved once I learned it.

The quick-detach mount proved rock solid through all our tests. There was no movement, and the optic held zero throughout, even when we changed firearms. The hold was obviously different with the Stribog, but the optic was consistent.

Final Thoughts on the Vortex AMG UH-1 Holographic Sight

As I mentioned earlier the Huey impressed me and my co-tester, who is also my adult son. The large window, clear glass, and forgiving holographic reticle kept us on target. It’s a capable rifle optic, but we thought it really shined on the Stribog. It immediately became the best close-quarters optic we had available for that firearm type.

The solid construction and reliable mount also make the UH-1 resistant to the knocking around such guns often take. We currently own three Stribogs between us, and we can both see a future where a Huey rides on top of each one.

The only feature we could not test was the night vision capability. Neither my son nor I runs night vision. Based on everything else, I expect it works as advertised but I cannot confirm it first-hand.

I think the UH-1 is a home-run self-defense optic. It does the job but remains among the genre’s more affordable options. The ruggedness is there, as is the performance. Give the Vortex Huey a look. It will likely impress you too.

Vortex AMG UH-1 Gen II Specifications

• 1x Magnification
• Parallax-Free
• Unlimited Eye Relief
• Vortex EBR-CQB Complex Reticle (1-MOA Red Dot & 68-MOA Semi-Ring)
• Length: 3.9 inches
• Height: 2.65 inches
• Weight: 11.6 ounces
• Waterproof/Fogproof/Shockproof
• Integrated Picatinny/Weaver Quick Detach Mount
• Powered by one CR123A Lithium Ion Battery (Included)
• Battery Life: 1,500 Hours
• MSRP: $959.99
